| Place of Origin: | Malaysia |
| Brand Name: | Allen Bradley |
| Model Number: | 1769-IF4FXOF2F |

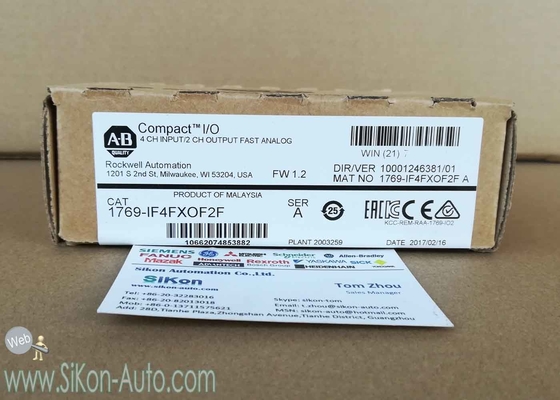

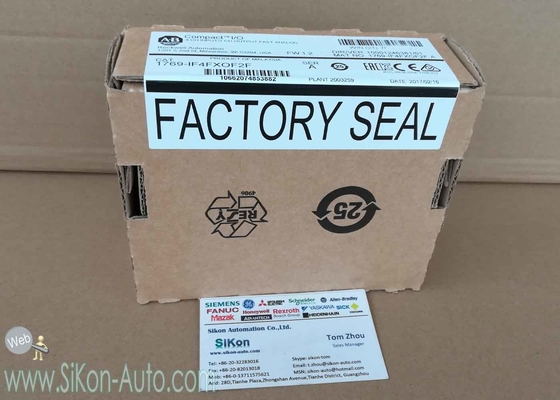

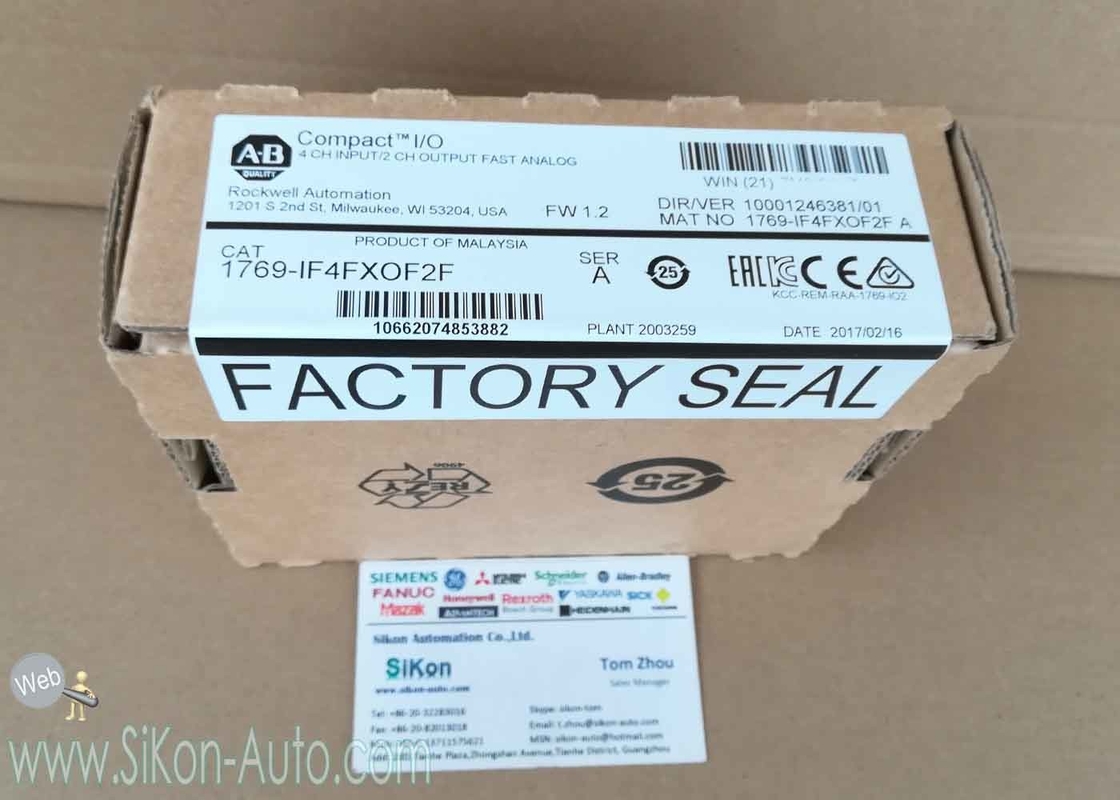

| Packaging Details: | Factory Seal |
|---|---|
| Delivery Time: | 0-3 days |
| Payment Terms: | T/T, PayPal, Western Union |
| Supply Ability: | 100 pcs/day |
| Description: | CMPLX 6 Pt High Speed A/I And A/O Module | Weight: | 0.29 KG |
|---|---|---|---|
| Memory: | 3 MB |
1769-IF4FXOF2F 1769IF4FXOF2F 1769-IF4FX0F2F
ANALOG COMBINATION MODULES
High Resolution, High Speed 4 In/2 Out Analog Combination Module
Product Details
| I/O Modules | |
|---|---|
| Analog Combination Modules | High Resolution, High Speed 4 In/2 Out Analog Combination Module |
1769 Contact Output Modules
| Cat. No. | Inputs/Outputs | Operating Voltage Range | Backplane Current | Power Supply Distance Rating |
| 1769-OW8 | 8 outputs | 5…265V AC 5…125V DC | 125 mA @ 5.1V 100 mA @ 24V | 8 |
| 1769-OW8I 1769-OW8IK(1) |
8 outputs, individually isolated | 5…265V AC 5…125V DC | 125 mA @ 5.1V 100 mA @ 24V | 8 |
| 1769-OW16 1769-OW16K(1) |
16 outputs | 5…265V AC 5…125V DC | 205 mA @ 5.1V 180 mA @ 24V | 8 |
| Cat. No. | Inputs/Outputs | Range | Resolution | Backplane Current | Power Supply Distance Rating |
| 1769-IF4 1769-IF4K(1) |
4 inputs, differential or single-ended | ±10V 0…10V 0…5V 1…5V 0…20 mA 4…20 mA |
14 bits (unipolar) 14 bits plus sign (bipolar) |
120 mA @ 5.1V 60 mA @ 24V |
8 |
| 1769-IF4I 1769-IF4IK(1) |
4 inputs, differential or single-ended, individually isolated |
±10V 0…10V 0…5V 1…5V 0…20 mA 4…20 mA |
16 bits (unipolar) 15 bits plus sign (bipolar) |
145 mA @ 5.1V 125 mA @ 24V |
8 |
| 1769-IF8 1769-IF8K(1) |
8 inputs, differential or single-ended | ±10V 0…10V 0…5V 1…5V 0…20 mA 4…20 mA |
16 bits (unipolar) 15 bits plus sign (bipolar) |
120 mA @ 5.1V 70 mA @ 24V |
8 |
| 1769-IF16C 1769-IF16CK(1) |
16 inputs, single-ended | 0…20 mA 4…20 mA | 16 bits (unipolar) 15 bits plus sign (bipolar) | 190 mA @ 5.1V 70 mA @ 24V | 8 |
| 1769-IF16V 1769-IF16VK(1) |
16 inputs, single-ended | ±10V 0…10V 0…5V 1…5V |
16 bits (unipolar) 15 bits plus sign (bipolar) |
190 mA @ 5.1V 70 mA @ 24V |
8 |
| 1769-IF4XOF2 1769-IF4XOF2K(1) |
4 inputs, differential or single-ended 2 outputs, single-ended |
0…10V 0…20 mA |
Input: 8 bits plus sign Output: 8 bits plus sign |
120 mA @ 5.1V 160 mA @ 24V |
8 |
| 1769-IF4FXOF2F | 4 inputs, fast differential or single-ended 2 outputs, fast single-ended |
±10V 0…10V 0…5V 1…5V 0…20 mA 4…20 mA |
Input: 14 bits (unipolar) 14 bits plus sign (bipolar) Output: 13 bits (unipolar) 13 bits plus sign (bipolar) |
220 mA @ 5.1V 120 mA @ 24V |
8 |
| 1769-OF2 1769-OF2K(1) |
2 outputs, single-ended | ±10V 0…10V 0…5V 1…5V 0…20 mA 4…20 mA |
14 bits (unipolar) 14 bits plus sign (bipolar) |
120 mA @ 5.1V 120 mA @ 24V |
8 |
Shipping Terms
|
Lead time: |
1-2 days |
|---|---|
| Courier: | DHL / UPS / FedEx |
| Courier Shipping time: | 1-3 Days |
| Packing: | NEW in Original packing / Used in neutral packing |
| New: | Twelve Months (One year) |
|---|---|
| Used: | Three Months |
