| Place of Origin: | JAPAN |
| Brand Name: | OMRON |

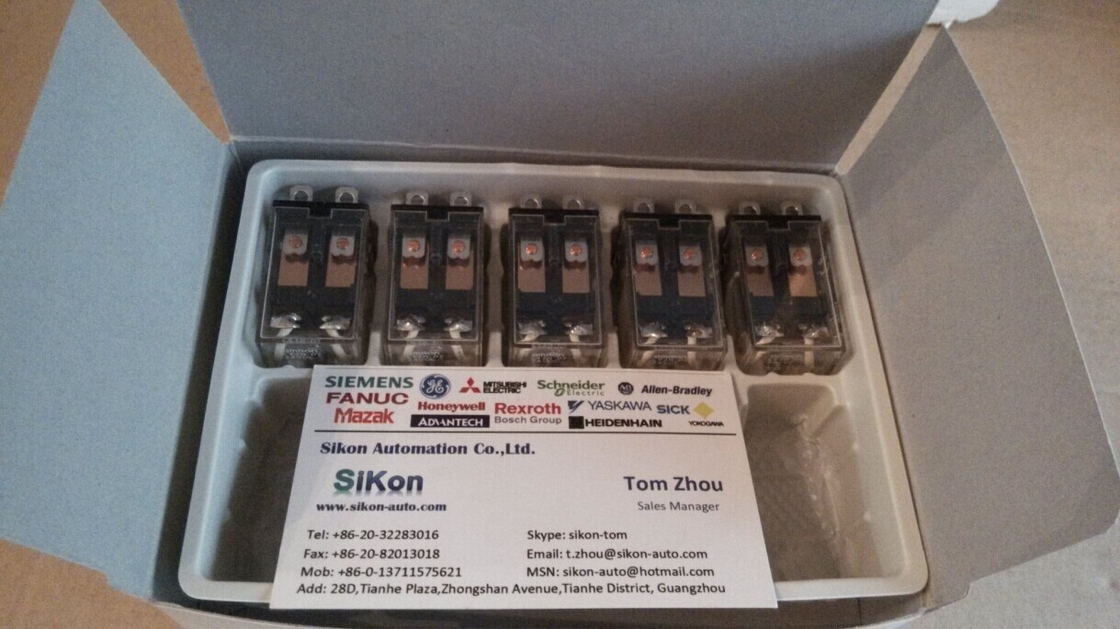

| Model Number: | LY2N-D2 |
| Price: | 8.5 USD |
|---|---|
| Delivery Time: | 0-3 days |
| Payment Terms: | T/T, PayPal, Western Union |
| Supply Ability: | 1000 pcs/day |
| Available: | NEW in box |
| Lead Time: | 0-3 Days |
| Payment Terms: | T/T, Western Union |
| Description: | Omron Relay DC12V,24V,48V,100/110V |
|---|
| Product classification |
Monostable relays Built-in LED indicator and diode type |
|---|---|
| Coil ratings | 48 VDC 18.5 mA |
| Coil resistance | 2600 Ohm |
| Operate voltage (Set voltage) | 80% Max. |
| Release voltage (Reset voltage) | 10% Min. |
| Max. voltage | 110% (of rated voltage) |
| Power consumption (Single stable) | 0.9 W |
| Operating indicator | LED indicator |
| Coil surge killer | Diode |
| Contact Type | DPDT |
| Contact method | Single |
| Contact material |
Contact body material: Ag alloy Contact finish: Nothing |
| Contact rated load |
110 VAC 10 A (Resistive load (cos phi = 1)) 110 VAC 7.5 A (Inductive load (cos phi = 0.4)) 24 VDC 10 A (Resistive load) 24 VDC 5 A (Inductive load (L/R = 7 ms)) |
| Maximum switching voltage |
250 VAC (Resistive load (cos phi = 1)) 250 VAC (Inductive load (cos phi = 0.4)) 125 VDC (Resistive load) 125 VDC (Inductive load (L/R = 7 ms)) |
| Maximum switching current |
AC: 10 A (Resistive load (cos phi = 1)) AC: 10 A (Inductive load (cos phi = 0.4)) DC: 10 A (Resistive load) DC: 10 A (Inductive load (L/R = 7 ms)) |
| Maximum switching power |
AC: 1100 VA (Resistive load (cos phi = 1)) AC: 825 VA (Inductive load (cos phi = 0.4)) DC: 240 W (Resistive load) DC: 120 W (Inductive load (L/R = 7 ms)) |
| Failure rate | 100 mA at 5 VDC (failure level: P Reference value) |
| Ambient temperature |
Operating: -25 to 40 CEL (with no icing or condensation) |
| Ambient humidity |
Operating: 5 to 85% RH (with no icing or condensation) |
| Contact resistance | Max. 50 mOhm, Measuring the voltage drop across the contacts by applying test voltage/current as 5 VDC 1 A |
|---|---|
| Operating time (set time) | 25 ms Max. |
| Release time (Reset time) | 25 ms Max. |
| Max.operating frequency (Mechanical) | 18000 opn./h |
| Max.operating frequency (Erectrical) | 1800 opn./h |
| Insulation resistance |
Between coil and contacts: 100 MOhm Min. (at 500 VDC) Between contacts of different polarity: 100 MOhm Min. (at 500 VDC) Between contacts of same polarity: 100 MOhm Min. (at 500 VDC) |
| Dielectric strength |
Between coil and contacts: 2000 VAC 50/60 Hz for 1 min (Leakage current 3 mA 50/60 Hz 1 min) Between contacts of different polarity: 2000 VAC 50/60 Hz for 1 min (Leakage current 3 mA 50/60 Hz 1 min) Between contacts of same polarity: 1000 VAC 50/60 Hz for 1 min (Leakage current 3 mA 50/60 Hz 1 min) |
| Vibration resistance (Destruction) | 10 to 55 to 10 Hz 0.5-mm single amplitude (1.0-mm double amplitude) for 2 hours each in X, Y, and Z directions (No defect in appearance and construction after applying variable vibration in each directions for 2 hours.) |
| Vibration resistance (Malfunction) | 10 to 55 to 10 Hz 0.5-mm single amplitude (1.0-mm double amplitude) in each direction |
| Shock resistance (Destruction) | 1000 m/s**2 each direction 3 times (No defect in appearance and construction after applying shock in each directions 3 times.) |
| Shock resistance (Malfunction) | 200 m/s**2 (Contacts must not open for 1 ms or longer after the relay is subjected to a shock in each direction 3 times.) |
| Endurance (Mechanical) | 100000000 operations Min. |
| Endurance (Electrical) | 500000 operations Min. |
| Protective structure | Closed type (cover) |
| Applicable standard (UL) |
Standard No.: UL508 File No.: E41643 |
| Applicable standard (CSA) |
Standard No.: C22.2 No.0, No.14 File No.: LR31928 |
| Applicable standard (TUV) | R50030064 |
| Applicable standard (SEV) | 98.5 50071.02 |
| Applicable standard(Other) | Conformed standard 2: Electrical Appliance and Material Safety Law |
| Terminal structure | Plug-in |
| Weight | Approx. 40 g |
