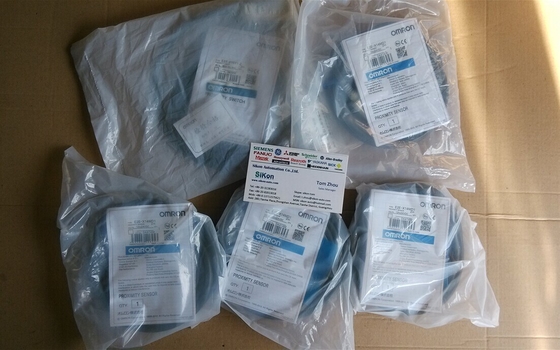

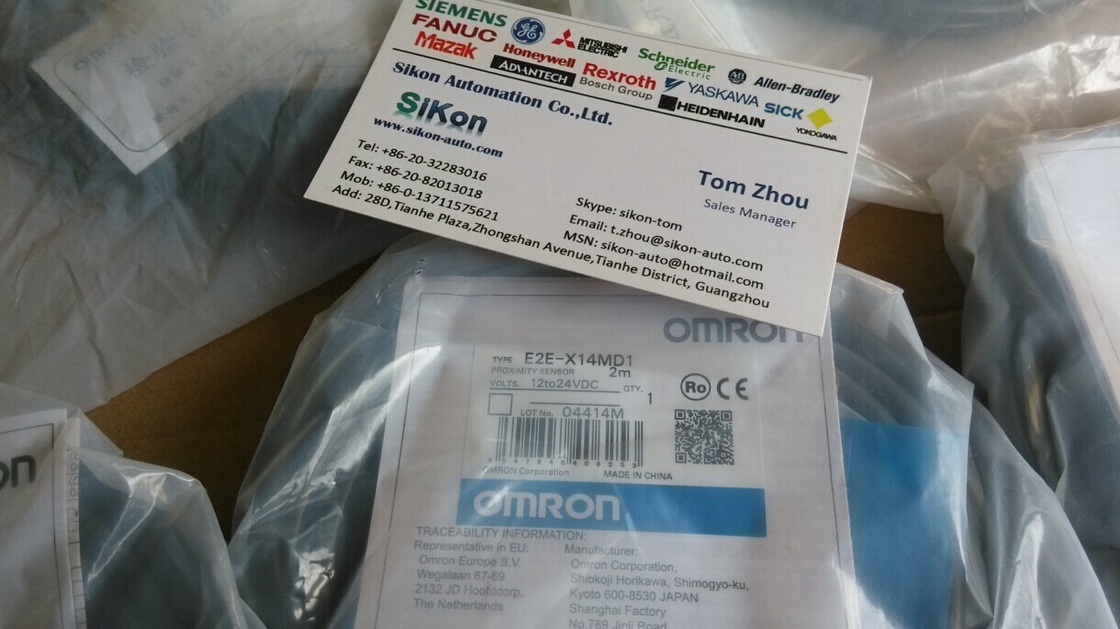

Omron E2E-X14MD1 Proximity Switch E2EX14MD1 OMRON

China Omron E2E-X14MD1 Proximity Switch E2EX14MD1 OMRON supplier
Omron E2E-X14MD1 Proximity Switch E2EX14MD1 OMRON supplier Omron E2E-X14MD1 Proximity Switch E2EX14MD1 OMRON supplier

Large Image :  Omron E2E-X14MD1 Proximity Switch E2EX14MD1 OMRON

Product Details:

Place of Origin: CHINA
Brand Name: OMRON
Model Number: E2E-X14MD1

Payment & Shipping Terms:

Price: 25 USD
Delivery Time: 0-3 days
Payment Terms: T/T, PayPal, Western Union
Supply Ability: 1000 pcs/day
Available: NEW in box
Lead Time: 0-3 Days
Payment Terms: T/T, Western Union
Contact Now
Detailed Product Description
Description: Omron Proximity Sensor Proximity Switch 2M 12-24VDC

E2E-X14MD1 E2EX14MD1
Omron CHINA
Omron Proximity Sensor Proximity Switch M18 12-24VDC, 2M, 5M, 6M

Cylinder type sensing head size M18
Type Unshielded
Sensing method Inductive type
Sensing distance 14 mm -10% to +10%
Setting distance 0 to 11.2 mm
Differential distance 10% Max. of sensing distance
Sensing object Ferrous metal (Sensitivity lowers with non-ferrous metals.)
Standard sensing object Iron 30*30*1mm
Response frequency 0.4 kHz (average)
Power supply voltage 12 to 24 VDC (ripple(p-p) :10% Max.)
Operating voltage range 10 to 30 VDC
Leakage current 0.8 mA Max.
Control output (Output type) DC 2-wire models with polarity
Control output (Switching capacity) 3 to 100 mA
Control output (Residual voltage) 3 V Max. (under load current with cable length of 2m)
Indicator Operation indicator(red), Operation setting indicator(green)
Operation mode NO
Protective circuit Surge suppressor
Output short-cut protection
Standard or Different frequency Standard
Ambient temperature Operating: -25 to 70 CEL
Storage: -40 to 85 CEL
(with no icing or condensation)
Ambient humidity Operating: 35 to 95 %RH
Storage: 35 to 95 %RH
(with no condensation)
Temperature influence +-10% Max. of sensing distance in temperature range of -25 to +70CEL
(As the basis for sensing distance of 23CEL)
Voltage influence +-1% Max. of sensing distance in rated voltage range +-15%. (As the basis for sensing distance at standard power voltage)
Insulation resistance 50 M OHM Min. at 500VDC between charged parts and the case
Dielectric strength 1000 VAC 50/60 Hz for 1 minute between charged parts and the case
Vibration resistance 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions
Shock resistance 1000m/s2 for 10 times each in X, Y, and Z directions
Degree of protection IEC60529: IP67
Company standard: Oil-proof
Applicable standard (EC Directive (Low Voltage Directive)) EN60947-1
EN60947-5-2
Applicable standard (EC Directive (EMC Directive)) EMI: EN60947-5-2
Emission Enclosure: CISPR11 Group 1 class A
EMS: EN60947-5-2
Immunity ESD: IEC61000-4-2
Immunity RF-interference: IEC61000-4-3
Immunity Conducted Disturbance: IEC61000-4-6
Immunity Burst: IEC61000-4-4
CE marking: Equipped
Applicable standard (CCC mark) Not equipped
Connection method Robot pre-wired models (Cable length: 2 m)
Weight (Packed state) approx. 130 g
Material (case) Brass nickel plating
Material (sensing surface) PBT
Material (clamping nuts) Brass nickel plating
Material (toothed washer) Iron zinc plating
Accessories Instruction manual
