| Place of Origin: | JAPAN |
| Brand Name: | OMRON |

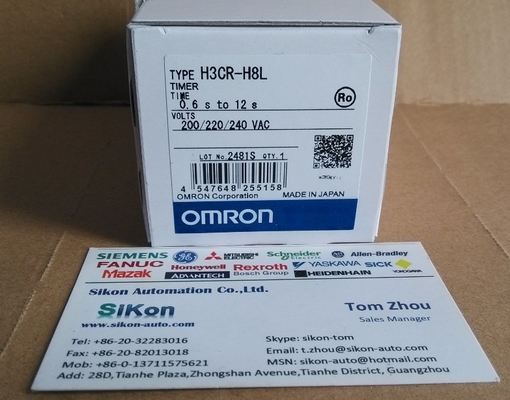

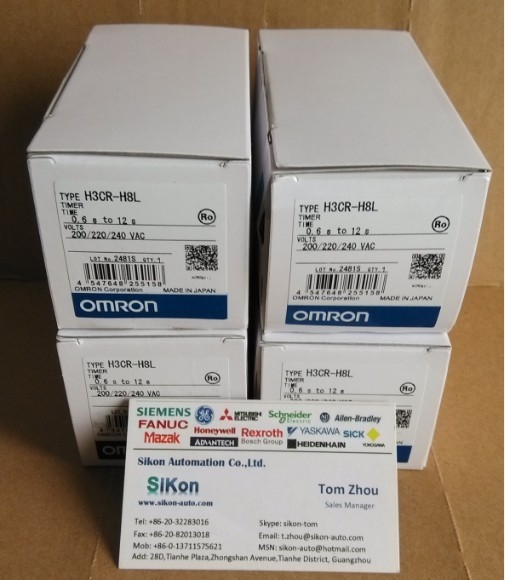

| Model Number: | H3CR-H8L |
| Price: | 40 USD |
|---|---|
| Delivery Time: | 0-3 days |
| Payment Terms: | T/T, PayPal, Western Union |
| Supply Ability: | 1000 pcs/day |
| Available: | NEW in box |
| Lead Time: | 3 Days |
| Payment Terms: | T/T, Western Union |
| Description: | 0.6s To 12s, 200/220/240V AC, 5A |
|---|
| Rated supply voltage | 200 to 240 VAC, 50/60 Hz |
|---|---|
| Operating voltage range | 85% to 110% of rated supply voltage |
| No-voltage input |
ON impedance: 1 kOhm max. ON residual voltage: 1 V max. OFF impedance: 500 kOhm min. |
| Power consumption (Relay ON) | Approx. 0.35 VA, 0.3 W (at 240 VAC) |
| Power consumption (Relay OFF) | Approx. 0.35 VA, 0.3 W (at 240 VAC) |
| Operation start voltage | 30% max. of rated supply voltage |
| Number of time ranges | 4 |
| Time ranges | 0.05 min to 0.6 min, 0.12 min to 1.2 min, 0.6 min to 6 min, 1.2 min to 12 min |
| Operating mode | Power OFF-delay |
| Control output Type | Relay output (DPDT) |
| Control output (Contact output) |
Switching capacities (resistive load (cos(phi)=1)): 250 VAC 5 A, 30 VDC 5 A Minimum applicable load: 10 mA at 5 VDC (failure level: P) |
| Operating resetting | Instantaneous operation/Time-limit reset |
| Ambient temperature |
Operating: -10 to 55 CEL Storage: -25 to 65 CEL (with no icing) |
| Ambient humidity | Operating: 35 to 85% RH |
| Accuracy of operating time |
+/- 0.2% max. (FS) (+/- 0.2% +/- 10 ms max. in a range of 0.6 s and 1.2 s) |
|---|---|
| Setting error | -5 to 5% (FS) |
| Influence of voltage | +/- 0.2% FS max. (+/- 0.2% +/- 10 ms max. in a range of 0.6 s and 1.2 s) |
| Influence of temperature | +/- 1% FS max. (+/- 1% +/- 10 ms max. in a range of 0.6 s and 1.2 s) |
| Insulation resistance | 100 MOhm min. (at 500 VDC) |
| Dielectric strength |
between current-carrying metal parts and exposed non-curernt-carrying metal parts: 2000 VAC, 50/60 Hz for 1 min between control output terminals and operating circuit: 2000 VAC, 50/60 Hz for 1 min between contacts of different polarities: 2000 VAC, 50/60 Hz for 1 min between non-continuous contacts: 1000 VAC, 50/60 Hz for 1 min |
| Impulse withstand voltage |
between power terminals: 3 kV between exposed non-current-carrying metal parts: 4.5 kV max. |
| Noise immunity | +/- 1.5 kV (between power terminals), square-wave noise by noise simulator (pulse width: 100 ns/1 us, 1-ns rise) |
| Static immunity | Mulfunction: 8 kV Destruction: 15 kV |
| Vibration resistance (Destruction) | 10 to 55 Hz, 0.75 mm single amplitude each in X, Y, and Z directions for 2 hours |
| Vibration resistance (Malfunction) | 10 to 55 Hz, 0.5 mm single amplitude each in X, Y, and Z directions for 10 min |
| Shock resistance (Destruction) | 980 m/s**2, 3 times each 6 directions |
| Shock resistance (Malfunction) | 98 m/s**2, 3 times each 6 directions |
| Mechanical Life expectancy (relay output) | 10000000 operations min. (under no load at 1200 operations/h) |
| Electrical Life expectancy (relay output) | 100000 operations min. (5 A at 250 VAC, resistive load at 1200 operations/h) |
| Degree of protection | IEC60529(JEM): IP40(panel surface) |
| Applicable standard (UL) |
Standard No.: UL508 File number: E41515 |
| Applicable standard (CSA) |
Standard No.: CSA C22.2 No.14 File number: LR22310 |
| Applicable standard (NK) | A-350-1 |
| Applicable standard (EC Directive (Low Voltage Directive) ) |
EN61812-1 IEC60664-1 4 kV/2 |
| Applicable standard (EC Directive (EMC Directive) ) |
EMI: EN61812-1 Emission Enclosure: EN55011 Group1 class A Emission AC mains: EN55011 Group1 class A EMS: EN61812-1 Immunity ESD: IEC61000-4-2(6 kV contact discharge, 8 kV air discharge) cRF-interference: IEC61000-4-3(10 V/m, AM radio waves (80 MHz to 1 GHz), 10 V/m, Pulse-modulated waves (900 MHz +/- 5 MHz)) Immunity Conducted Disturbance: IEC61000-4-6(10 V (0.15 to 80 MHz)) Immunity Burst: IEC61000-4-4(2 kV power-line, 2 kV I/O signal-line) Immunity Surge: IEC61000-4-5(1 kV line to line, 2 kV line to ground) |
| External connection method | 8-pin round socket |
| Case color | Munsell 5Y7/1 (Light gray) |
| Weight | Approx. 120 g |
