Place of Origin: | JAPAN |
Brand Name: | OMRON |
Model Number: | H3BG-8 |
Price: | 45 USD |
---|---|
Delivery Time: | 0-3 days |
Payment Terms: | T/T, PayPal, Western Union |
Supply Ability: | 1000 pcs/day |
Available: | NEW in box |
Lead Time: | 3 Days |
Payment Terms: | T/T, Western Union |

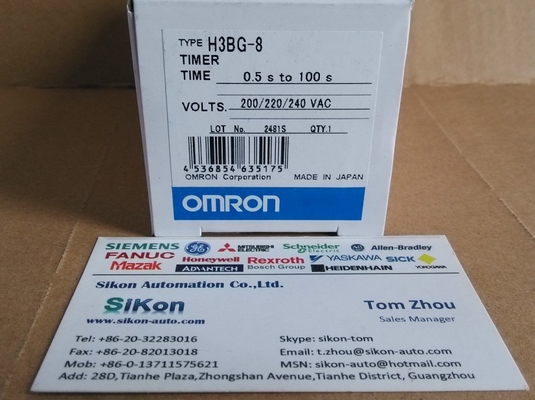

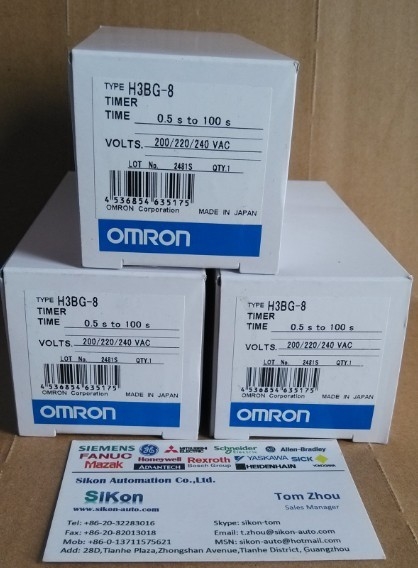

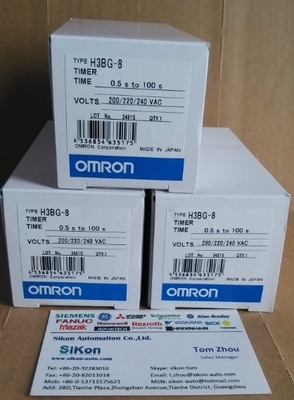

Description: | Timer, 0.5s To 100s, 200/220/240VAC, 5A |
---|
Operating method | Time-limit operation | ||||
Reset method | Self-reset | ||||
External connections | 8-pin socket | Top screw terminal | |||
Contacts | Time-limit | SPST-NO + SPST-NO | SPST-NO + SPST-NO | ||
Instantaneous | --- | SPST-NO | --- | SPST-NO | |
Mounting method | Surface mounting/Flush mounting | Surface mounting | |||
Model |
H3BG-8 H3BG-8-30 |
H3BG-8H H3BG-8H-31 |
H3BG-F | H3BG-FH | |
(1) H3CR-G8L H3CR-G8L-30 |
(2) H3CR-G8EL H3CR-G8EL-31 |
(3) H3CR-G8L with P2CF-8 etc. |
(4) |
Compared item | H3BG | H3CR-G | Remarks |
Supply voltage |
100/110/120 VAC 200/220/240 VAC |
100/110/120 VAC 200/220/240 VAC |
|
Star time range |
1 range, 4 scales, one multi-timer H3BG-8: 0.5 s to 100 s |
1 range, 4 scales, one multi-timer H3CR-G8L: 0.5 s to 120 s |
See note 1. |
Max. star time | 4 scales: 5, 10, 50, 100 |
4 scales: 6, 12, 60, 120 |
