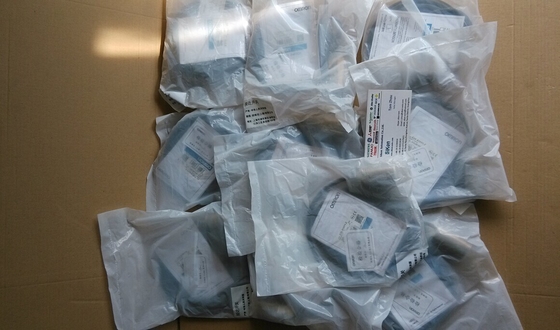

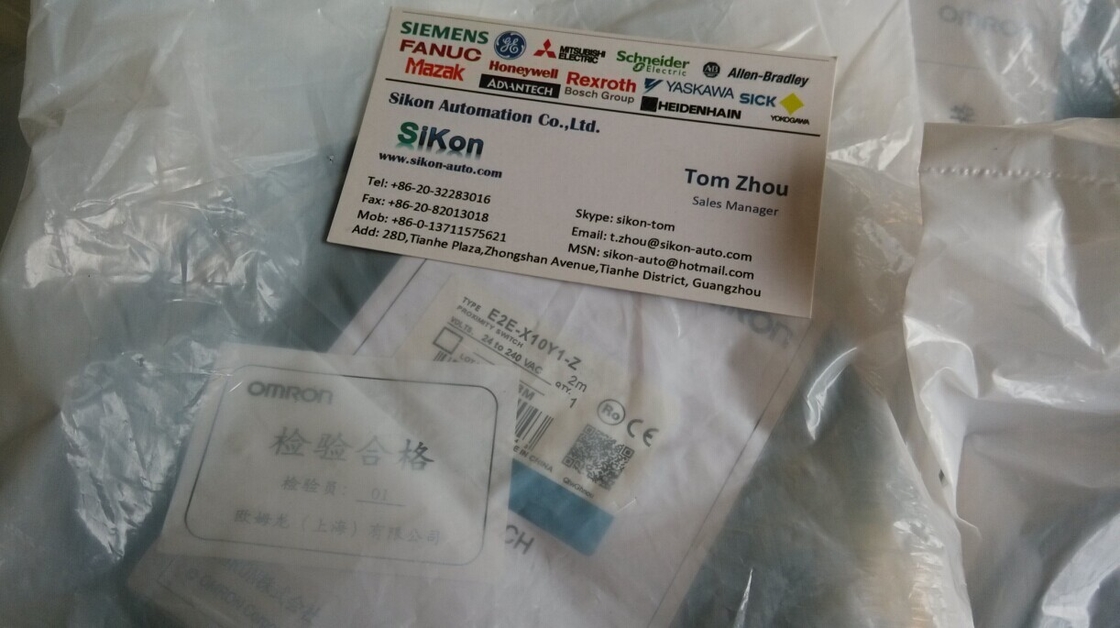

Omron E2E-X10Y1-Z 2M PROXIMITY SWITCH E2EX10Y1Z

Japan Omron

PROXIMITY SWITCH 0-10MM 24-240VAC INDUCTIVE



Cylinder type sensing head size	M30
Type	Shielded
Sensing method	Inductive type
Sensing distance	10 mm -10% to +10%
Setting distance	0 to 8 mm
Differential distance	10% Max. of sensing distance
Sensing object	Ferrous metal (Sensitivity lowers with non-ferrous metals.)
Standard sensing object	Iron 30*30*1mm
Response frequency	25 Hz (average)
Power supply voltage	24 to 240 VAC
Operating voltage range	20 to 264 VAC
Leakage current	1.7 mA Max.
Control output (Output type)	AC 2-wire models
Control output (Switching capacity)	5 to 300 mA
Indicator	Operation indicator(red)
Operation mode	NO
Protective circuit	Surge suppressor
Standard or Different frequency	Standard
Ambient temperature	Operating: -40 to 85 CEL Storage: -40 to 85 CEL (with no icing or condensation)
Ambient humidity	Operating: 35 to 95 %RH Storage: 35 to 95 %RH (with no condensation)
Temperature influence	+-10% Max. of sensing distance in temperature range of -25 to +70CEL +-15% Max. of sensing distance in temperature range of -40 to +85CEL (As the basis for sensing distance of 23CEL)
Voltage influence	+-1% Max. of sensing distance in rated voltage range +-15%. (As the basis for sensing distance at standard power voltage)
Insulation resistance	50 M OHM Min. at 500VDC between charged parts and the case
Dielectric strength	4000 VAC 50/60 Hz for 1 minute between charged parts and the case
Vibration resistance	10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions
Shock resistance	1000m/s2 for 10 times each in X, Y, and Z directions
Degree of protection	IEC60529: IP67 Company standard: Oil-proof
Applicable standard (EC Directive (Low Voltage Directive))	EN60947-1 EN60947-5-2
Applicable standard (EC Directive (EMC Directive))	EMI: EN60947-5-2 Emission Enclosure: CISPR11 Group 1 class A EMS: EN60947-5-2 Immunity ESD: IEC61000-4-2 Immunity RF-interference: IEC61000-4-3 Immunity Conducted Disturbance: IEC61000-4-6 Immunity Burst: IEC61000-4-4 CE marking: Equipped
Applicable standard (CCC mark)	Equipped
Connection method	Pre-wired models (Cable length: 2 m)
Weight (Packed state)	approx. 175 g
Material (case)	Brass nickel plating
Material (sensing surface)	PBT
Material (clamping nuts)	Brass nickel plating
Material (toothed washer)	Iron zinc plating
Accessories	Instruction manual



---

---
