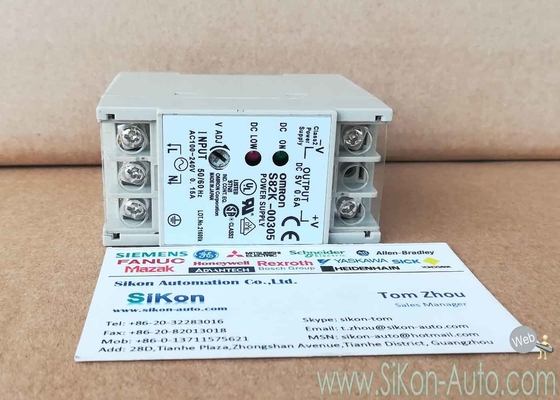

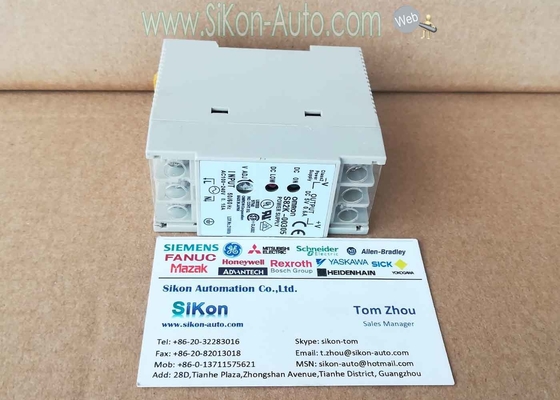

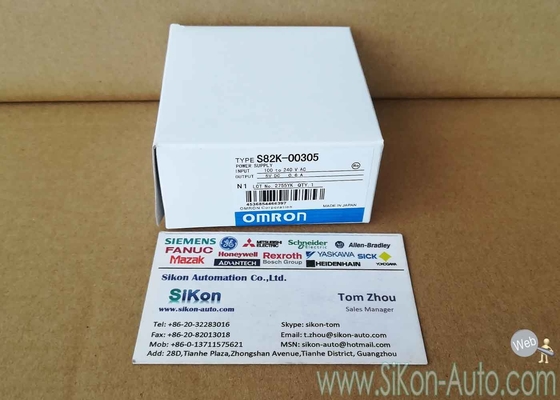

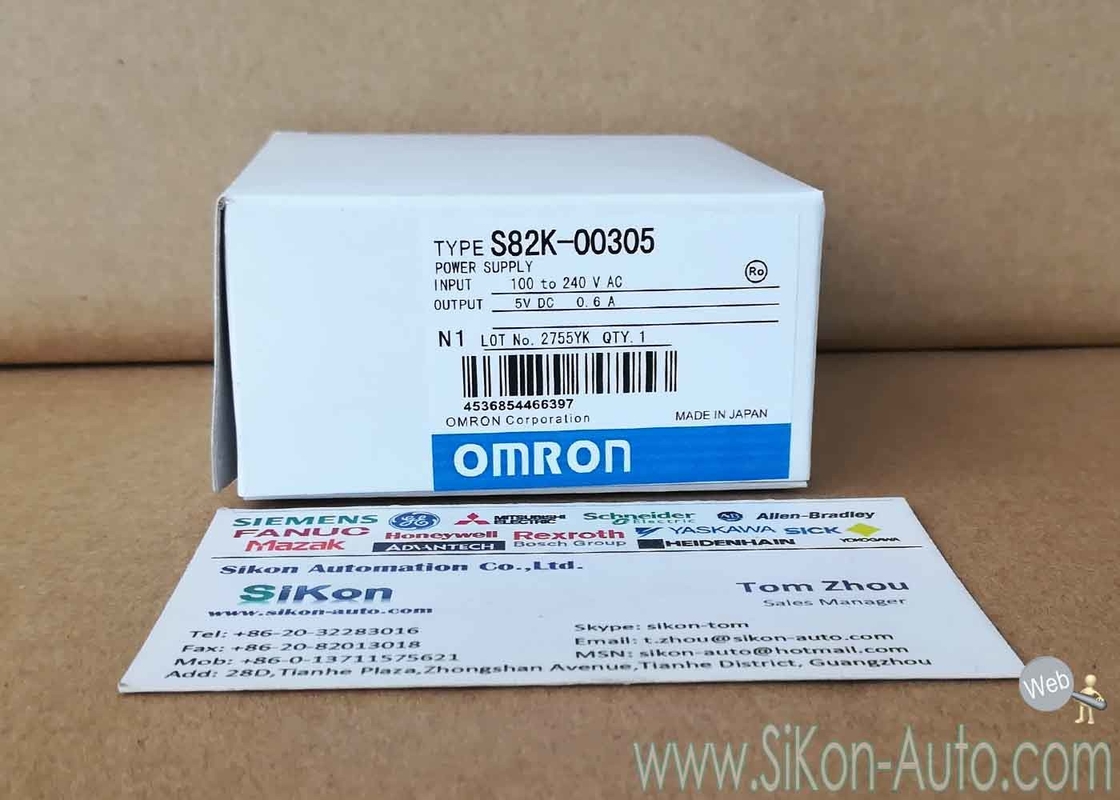

S82K-00305 Omron Compact Power Supply 5VDC S82K00305

S82K-00305 Omron Compact Power Supply 5VDC S82K00305

    • S82K-00305 Omron Compact Power Supply 5VDC S82K00305
    • S82K-00305 Omron Compact Power Supply 5VDC S82K00305
    • S82K-00305 Omron Compact Power Supply 5VDC S82K00305
    • S82K-00305 Omron Compact Power Supply 5VDC S82K00305
  • S82K-00305 Omron Compact Power Supply 5VDC S82K00305

    Product Details:

    Place of Origin: JAPAN
    Brand Name: OMRON
    Model Number: S82K-00305

    Payment & Shipping Terms:

    Delivery Time: 0-3 days
    Payment Terms: T/T, PayPal, Western Union
    Supply Ability: 1000 pcs/day
    Available: NEW in box
    Lead Time: 0-3 Days
    Payment Terms: T/T, Western Union
    Contact Now
    Detailed Product Description
    Description: Omron Compact Power Supply 5VDC 0.6A

    S82K-00305   S82K00305
    Omron JAPAN
    Compact Power Supply  5VDC  0.6A

    Power rating 15 W 30 W
    Output voltage (VDC) 5 V 12 V 24 V 5 V 12 V 24 V
    Efficiency 230 VAC input
    *6
    77% typ. 77% typ. 80% typ. 79% typ. 82% typ. 86% typ.
    Input Voltage range *1 Single-phase, 85 to 264 VAC, 90 to 350 VDC *10
    Frequency *1 50/60 Hz (47 to 450 Hz)
    Current 115 VAC input
    *6
    0.32 A typ. 0.3 A typ. 0.31 A typ. 0.5 A typ. 0.57 A typ. 0.58 A typ.
    230 VAC input
    *6
    0.2 A typ. 0.21 A typ. 0.2 A typ. 0.32 A typ. 0.37 A typ. 0.36 A typ.
    Power factor
    *6
    230 VAC input,
    100% load
    0.42 min. 0.43 min. 0.42 min. 0.43 min.
    Leakage
    current
    115 VAC input 0.14 mA typ. 0.13 mA typ.
    230 VAC input 0.25 mA typ. 0.24 mA typ.
    Inrush
    current *2
    (for a cold
    start at
    25°C)
    115 VAC input 16 A typ. 16 A typ.
    230 VAC input 32 A typ. 32 A typ.
    Output Rated output current 3 A 1.2 A 0.65 A 5 A 2.5 A 1.3 A
    Boost current 3.6 A 1.44 A 0.78 A 6 A 3 A 1.56 A
    Voltage adjustment range *3 -10% to 15% (with V.ADJ) (guaranteed)
    Ripple &
    Noise
    voltage *4
    100 to 240
    VAC input,
    100% load *6
    60 mVp-p
    max. at 20
    MHz of
    bandwidth
    50 mVp-p
    max.at 20
    MHz of
    bandwidth
    30 mVp-p
    max. at 20
    MHz of
    bandwidth
    30 mVp-p
    max. at 20
    MHz of
    bandwidth
    30 mVp-p
    max. at 20
    MHz of
    bandwidth
    30 mVp-p
    max. at 20
    MHz of
    bandwidth
    Input variation influence *8 0.4% max. 0.4% max.
    Load variation influence *7 0.8% max. 0.8% max.
    Temperature
    variation
    influence
    115 to 230
    VAC input
    0.05%/°C max. 0.05%/°C max.
    Start up time
    *2
    115 VAC input
    *6
    530 ms
    typ.
    520 ms
    typ..
    580 ms
    typ.
    550 ms
    typ.
    550 ms
    typ.
    600 ms
    typ.
    230 VAC input
    *6
    330 ms
    typ.
    400 ms
    typ.
    400 ms
    typ.
    430 ms
    typ.
    490 ms
    typ.
    480 ms
    typ.
    Hold time
    *2
    115 VAC input
    *6
    28 ms typ. 29 ms typ. 32 ms typ. 33 ms typ. 36 ms typ. 23 ms typ.
    230 VAC input
    *6
    134 ms
    typ.
    138 ms
    typ.
    134 ms
    typ.
    177 ms
    typ.
    170 ms
    typ.
    154 ms
    typ.
    Additional
    functions
    Overload protection Yes, automatic reset Yes, automatic reset
    Overvoltage protection *5 Yes, 130% or higher of rated output voltage, power shut off (shut off the
    input voltage and turn on the input again)
    Series operation Yes (For up to two Power Supplies, external diodes are required.)
    Parallel operation Yes (Refer to Safety Precautions) (For up to two Power Supplies)
    Output indicator Yes (LED: Green), lighting from 80% to 90% or more of rated voltage
    Insulation Withstand voltage 3.0 kVAC for 1 min. (between all input terminals and output terminals),
    current cutoff 20 mA
    2.0 kVAC for 1 min. (between all input terminals and PE terminals), current
    cutoff 20 mA
    1.0 kVAC for 1 min. (between all output terminals and PE terminals),
    current cutoff 20 mA
    Insulation resistance 100 MΩ min. (between all output terminals and all input terminals/PE
    terminals) at 500 VDC
    Environ-
    ment
    Ambient operating
    temperature *12
    -40 to 70°C (Derating is required according to the temperature. Refer to
    Engineering Data) (with no condensation or icing)
    Storage temperature -40 to 85°C (with no condensation or icing)
    Ambient operating humidity 0% to 95% (Storage humidity: 0% to 95%)
    Vibration resistance 10 to 55 Hz, 0.375 mm half amplitude for 2 h each in X, Y, and Z directions
    Shock resistance 150 m/s2, 3 times each in ±X, ±Y, and ±Z directions
    Reliability MTBF 135,000 hrs min.
    Life expectancy *9 10 years min.
    Con-
    struction
    Weight 150 g max. 195 g max.
    Cooling fan No
    Degree of protection IP20 by EN/IEC 60529
    Standards Harmonic current emissions Conforms to EN 61000-3-2
    EMI Conducted
    Emissions
    Conforms to EN 61204-3 Class B, EN 55011 Class B
    Radiated
    Emissions
    Conforms to EN 61204-3 Class B, EN 55011 Class B
    EMS Conforms to EN 61204-3 high severity levels
    Approved Standards UL Listed: UL 508 (Listing, Class2 Output: Per UL 1310)
    UL UR: UL 62368-1 (Recognition)
    cUL: CSA C22.2 No.107.1 (Class2 Output: Per CSA C22.2 No.223)
    cUR:CSA C22.2 No.62368-1
    EN/VDE: EN 50178, EN 62368-1
    Conformed Standards PELV (EN 60204-1, EN 50178)
    EN 61558-2-16
    EAC (TR CU 004 / 2011, TR CU 020 / 2011)
    RCM (EN61000-6-4)
    Marine Standards Lloyd’s register *10 *11
    SEMI Conforms to F47-0706 ( 200 to 240 VAC input)


    Omron has developed a new and exciting family of compact power supplies. With the same high quality and practical design that made our previous series safe, reliable, and easy to install, the new S8VK series is even tougher, more compact and easier to use.
    Omron is a world leader in the development and manufacture of industrial power supplies.
    We launched our first compact product, the S82K, in 1987 and our S8VS compact series has been an automatic choice with customers since 2002.

    To ensure that we provide the perfect solution to match every customer’s need, Omron has launched 4 different families: the cost effective S8VK-C, the standard with single-phase input S8VK-G, the standard with three-phase input S8VK-T, and the redundancy unit S8VK-R.

    …that make a world of difference!

    Three compelling reasons why the S8VK is the right power supply for you:

    Resistant in tough environments

    Omron is confident that the quality of the S8VK will exceed your high expectations. Its robust design and construction withstand harsh environments and provide stable operation over a wide operating temperature range. Because of high MTBF figures, your S8VK will keep running in stable condition for a long term.

    Easy and fast installation

    The S8VK series not only offers you greater flexibility when designing your machine, it also saves you time and reduces costs thanks to the minimal wiring requirements and easy one-handed mounting provided by the enhanced DIN-rail mounting clip.

    The most compact class on the market

    Designed with space saving in mind, the S8VK series is our most compact power-supply range ever and the most compact class on today’s market.

    Resistant in tough environments

    S8VK-G Features 8

    Wherever the S8VK is installed within the range of the S8VK derating curve, it will give the same reliable performance for the duration of its service life. The wide operating temperature range of between -40°C to 70°C (S8VK-G/T/R) guarantees stable operation in any environment where other power supplies may be found lacking. But its robust design advantages don't end there because the S8VK also offers high resistance to the vibration transmitted by machinery in close proximity, this is due to the vibration-resistant DIN-rail mounting clip.

    Easy and fast installation

    Making your life easier

    S8VK-G Features 10

    Simply click onto a standard DIN rail using one hand to mount in a flash. Effortless and time saving! In addition, the S8VK features a double set of DC output terminals (three for the negative terminal), which means you also spend less time and effort on wiring.

    Long-life guaranteed

    Designed to international safety standards for global markets, the S8VK even has approvals for marine applications (S8VK-G/T/R) and carries an across-the-board, warranty on all models no matter which country your machine is exported to! Because of high MTBF figures, your S8VK will keep running in stable condition for a long term.










    We could SUPPLY:

    Omron Automation Systems: Machine Automation Controllers, PLC, Remote I/O, Integrated Satety, HMI, Softeware;
    Omron Motion & Drives: Machine Automation Controllers,Motion Controllers, Servo Systems, Frequency Inverters;
    Omron Sensing: Photoelectric Sensors, Fiber Optic Sensors, Proximity Sensors, Limit Switches,Vision Sensor &Systems,Measurement Sensors, Rotary Encoders, Ultrasonic Sensors;
    Omron Safety: Light Curtains, Laser Scanner, Satety Mats, Programmable Safety Controllers, Interlock Switches,Monitoring Relays,E-stop & Rope Pull Switches, Integrated Safety;
    Omron Control Components:Temperature Controllers, Power Supplies,Timers, Counters, Programmable Relays, Digital Panel Meters;
    Omron Switching Components: Electromechanical Relays, Solid State Relays, Monitoring Products, Pushbutton Switches.

    If you Seek the Inquired Omron Part From Our Website, Please Skype / Email us For a Quote.
    If you Didn't Seek the Inquired Omron Part From Our Website, Also Pls Skype/Email us For a Quote.



    Relation Items:

    Power ratings Input voltage Output Voltage
    (VDC)
    Output current Boost Current Model number
    15 W Single phase
    100 to 240 VAC
    90 to 350 VDC
    5 V 3 A 3.6 A S8VK-G01505
    12 V 1.2 A 1.44 A S8VK-G01512
    24 V 0.65 A 0.78 A S8VK-G01524
    30 W 5 V 5 A 6 A S8VK-G03005
    12 V 2.5 A 3 A S8VK-G03012
    24 V 1.3 A 1.56 A S8VK-G03024
    60 W 12 V 4.5 A 5.4 A S8VK-G06012
    24 V 2.5 A 3 A S8VK-G06024
    120 W 24 V 5 A 6 A S8VK-G12024
    240 W 24 V 10 A 12 A S8VK-G24024
    48 V 5 A 6 A S8VK-G24048
    480 W 24 V 20 A 24 A S8VK-G48024
    48 V 10 A 12 A S8VK-G48048



    Mounting Brackets



    Name Model
    Front-mounting bracket (for 15, 30 and 60 W models) S82Y-VS10F
    Front-mounting bracket (for 120, 240 and 480 W models) S82Y-VK10F
    Side-mounting bracket (for 15 W models) S82Y-VK15P
    Side-mounting bracket (for 30 and 60 W models) S82Y-VS10S
    Side-mounting bracket (for 120 W models) S82Y-VK10S
    Side-mounting bracket (for 240 W models) S82Y-VK20S

    Note: Be sure to use the accessory screws.
    Mounting screw tightening torque (recommended): 4.43 to 5.31 lb-in (0.5 to 0.6 N·m)
